Water intake replacement

Sea-water pump synchronous motor replacement

A 60-year-old Westinghouse synchronous motor for a sea-water pump was replaced even though no site drawings remained available.

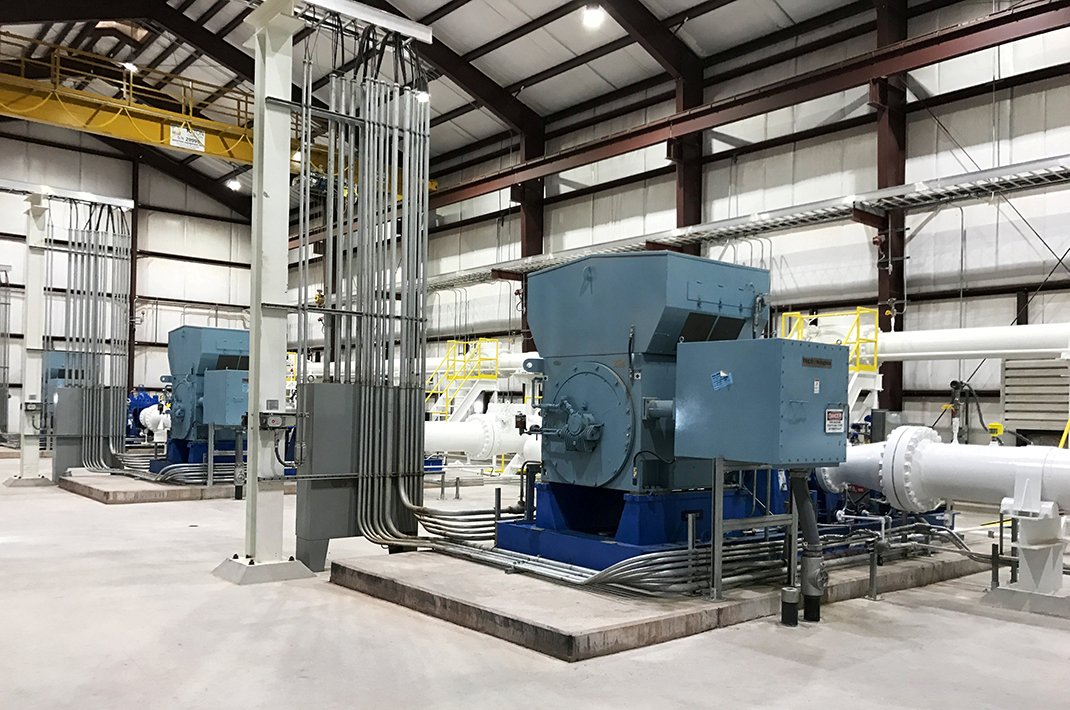

Sea-water pump synchronous motor replacement project image

Project overview

A 60-year-old Westinghouse synchronous motor for a sea-water pump was replaced even though no site drawings remained available.

Challenge

A 60-year-old Westinghouse synchronous motor needed replacement for sea-water pump duty, but the site no longer had usable drawings.

Solution

Historical specifications and motor knowledge were used to recreate a compatible package for the existing pump station.

Outcome

The critical sea-water pump application received a fully compatible synchronous replacement with mounting and performance requirements preserved.

Engineering highlights

  • 1,500 HP
  • 4,160 V
  • Synchronous motor
  • Six-decade-old Westinghouse predecessor

Replacement scope

Historical specification recoverySynchronous motor replacementPump-station continuity

Project images

Sea-water pump synchronous motor replacement project imageSea-water pump synchronous motor replacement project imageSea-water pump synchronous motor replacement project image

Related replacement engineering notes

PAM two-speed controlled-flow operation

Pole Amplitude Modulation motors provide two fixed speeds from a single winding, helping pumps and fans reduce energy use without a full variable-frequency package.

  • Single-winding, two-speed squirrel cage construction
  • Oil-filled five-pole speed-changing switch is typically installed close to the motor
  • Lower-speed starting reduces inrush current and thermal stress

Load-sharing replacement motors

When two motors drive one machine in parallel, replacing one motor requires tight matching of electrical and mechanical behavior so load sharing remains stable.

  • Match torque curve, speed slip, efficiency, inertia, cooling, and starting behavior
  • Preserve shaft height, shaft end, feet, terminal box, and coupling interface
  • Relevant to HPGR, mills, pumps, fans, compressors, and other paired-drive systems

Cooling system enhancement

Aging motors often need improved cooling to handle hotter ambient conditions and longer duty cycles while preserving the existing mounting envelope.

  • Review cooling path, airflow, heat exchanger selection, and cooling class
  • Improve thermal margin without changing the foundation, coupling, or terminal arrangement
  • Recovered example: 4,600 kW motor cooling upgraded from IC511 to IC516 while frame size reduced from 1250 mm to 900 mm

Identical terminal-box replacement

Replacement motors can be designed with identical main and auxiliary terminal boxes to avoid site cable, terminal, and commissioning changes.

  • Match dimensions, cable connections, and terminal locations
  • Reduce shutdown risk during commissioning
  • Especially useful in brownfield replacements where cable routing is fixed
