Electric Motors specifications and applications
TECO has earned its position as a global leader in the design and manufacturing of large induction motors through decades of engineering excellence.

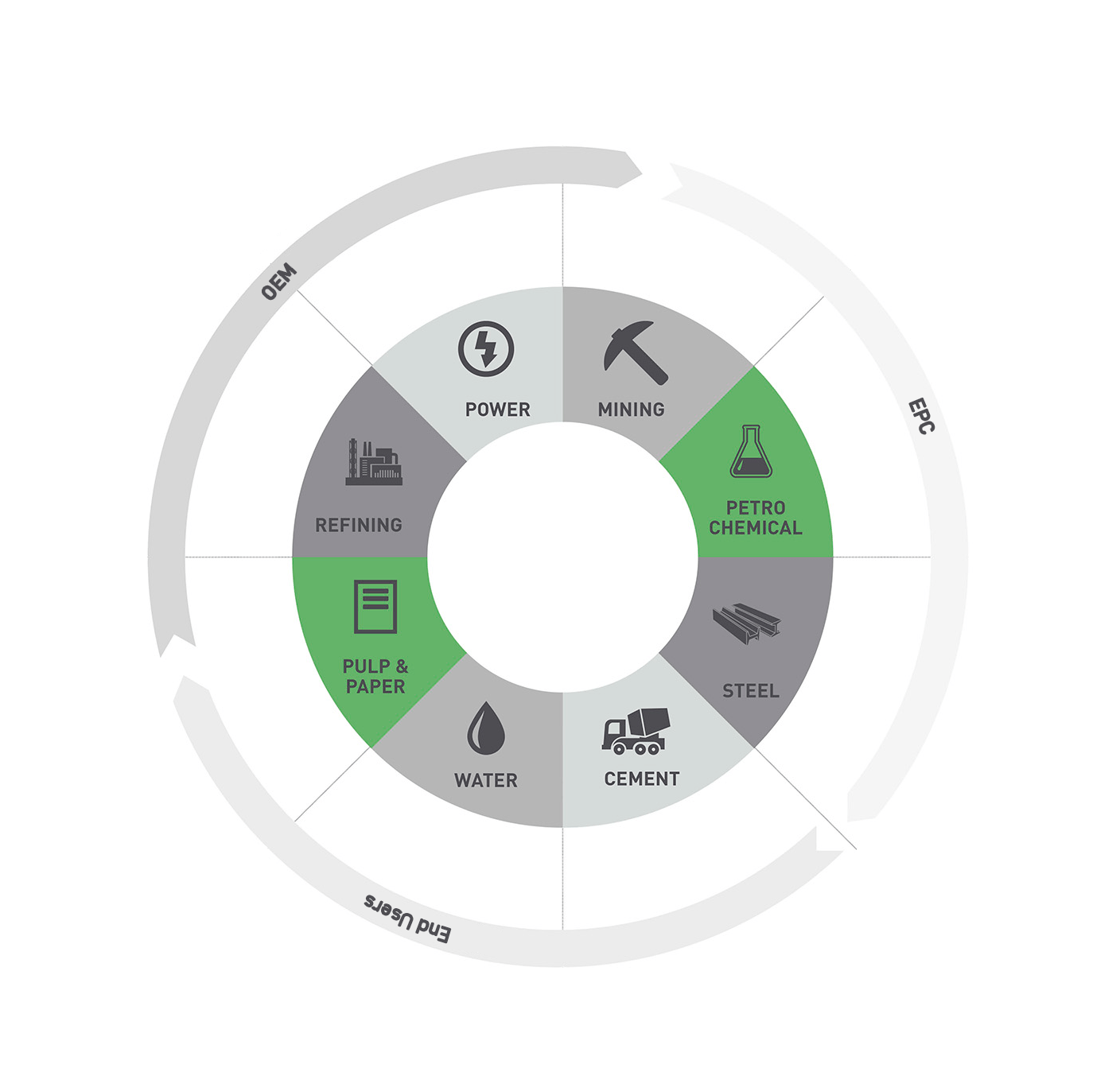

Palmera works directly with OEMs and EPC companies to offer motors and drives for rotating equipment projects across the globe.
The portfolio covers low voltage, medium voltage, high voltage, horizontal, vertical, safe area, hazardous area, and VFD-compatible designs.
- 0.25 HP to 30,000 HP
- 200 V to 14.5 kV
- 2 to 42 poles
- IEC and NEMA frames
Engineering considerations
PAM two-speed controlled-flow operation
Pole Amplitude Modulation motors provide two fixed speeds from a single winding, helping pumps and fans reduce energy use without a full variable-frequency package.
- Single-winding, two-speed squirrel cage construction
- Oil-filled five-pole speed-changing switch is typically installed close to the motor
- Lower-speed starting reduces inrush current and thermal stress
Load-sharing replacement motors
When two motors drive one machine in parallel, replacing one motor requires tight matching of electrical and mechanical behavior so load sharing remains stable.
- Match torque curve, speed slip, efficiency, inertia, cooling, and starting behavior
- Preserve shaft height, shaft end, feet, terminal box, and coupling interface
- Relevant to HPGR, mills, pumps, fans, compressors, and other paired-drive systems
Cooling system enhancement
Aging motors often need improved cooling to handle hotter ambient conditions and longer duty cycles while preserving the existing mounting envelope.
- Review cooling path, airflow, heat exchanger selection, and cooling class
- Improve thermal margin without changing the foundation, coupling, or terminal arrangement
- Recovered example: 4,600 kW motor cooling upgraded from IC511 to IC516 while frame size reduced from 1250 mm to 900 mm
Identical terminal-box replacement
Replacement motors can be designed with identical main and auxiliary terminal boxes to avoid site cable, terminal, and commissioning changes.
- Match dimensions, cable connections, and terminal locations
- Reduce shutdown risk during commissioning
- Especially useful in brownfield replacements where cable routing is fixed
Torque and speed-curve matching
Replacement designs must consider existing load curves, starting current, and speed-torque behavior so the new motor remains compatible with the driven machine.
- Match original speed-torque curve and starting behavior
- Reduce inrush current where possible
- Keep adequate torque safety factor during network voltage drop and soft-start operation
VFD-compatible motor replacement
VFD-compatible motors require review of the original drive design, harmonic effects, insulation stress, and the ability to operate without changing existing drive settings.
- Account for THD and high-voltage spike insulation stress
- Use motor and VFD design data during replacement engineering
- Witness testing can simulate real operating conditions and load
DC-to-AC conversion
Old DC motors can be replaced with AC motors and VFDs when output characteristics are matched to protect the driven machine and process.
- Match output characteristics of the existing DC motor
- Maintain dimensional and mechanical interfaces
- Requires direct access to experienced motor and drive design teams
Hazardous-area replacement
Hazardous-area motor replacements require careful review because site classification and protection standards may have changed since the original installation.
- Review IEC, IECEx, CSA, UL, and ATEX requirements
- Confirm the new motor suits current site conditions
- Applicable to LV, MV, and HV motors in oil, gas, and petrochemical plants
Spare-parts inventory continuity
Replacement motors can be designed around existing spare-parts inventories to reduce stock duplication and maintenance cost.
- Consider existing bearings, sleeve bearings, carbon brushes, and other maintained components
- Useful for large plants with high-value motor spares already in stock
- Supports long-term maintenance continuity
Related case studies
HPGR load-sharing motor replacement
A high-pressure grinding roll application required one motor to be replaced while the remaining parallel motor stayed in service.
Cooling upgrade for 4,600 kW replacement motor
An ELIN motor replacement was redesigned with an upgraded cooling system while preserving the installation envelope.
Twin boiler feed pump replacement
One of two Siemens 630 kW, 6 kV, 10-pole boiler feed pump motors was replaced without site modifications.
Identical terminal-box brownfield replacement
A brownfield replacement motor was engineered with main and auxiliary terminal boxes matching the original motor layout.
Torque and speed-curve matched replacement
A replacement motor design was matched against the original speed-torque behavior and driven-machine load curve.

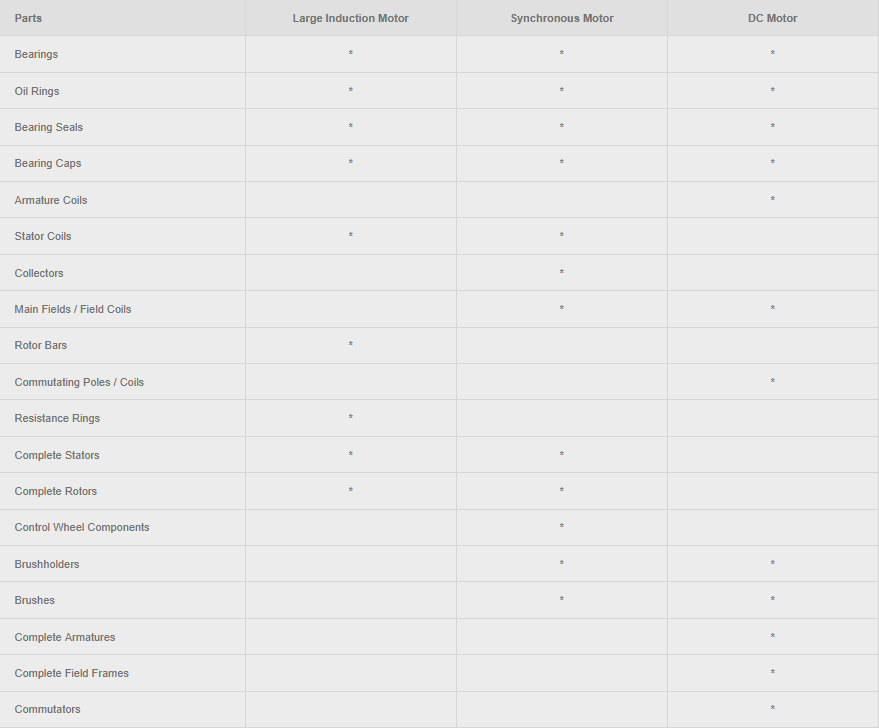

Spare-parts continuity replacement program
A replacement motor program was shaped around the customer's existing spare-parts inventory to protect maintenance continuity.
DC-to-AC motor conversion with VFD control
An obsolete DC motor replacement path was converted into an AC motor and VFD package while protecting the driven machine requirements.
Obsolete motor drop-in replacement without site changes
An old and obsolete motor was replaced with an upgraded modern design while keeping the installation footprint stable.
Sea-water pump synchronous motor replacement
A 60-year-old Westinghouse synchronous motor for a sea-water pump was replaced even though no site drawings remained available.
VFD-compatible slurry pump replacement
A copper mine slurry pump motor was replaced with a VFD-compatible design and improved electrical performance.
District cooling chiller motor references
Project references show extensive medium-voltage motor use in GCC district cooling plants.
