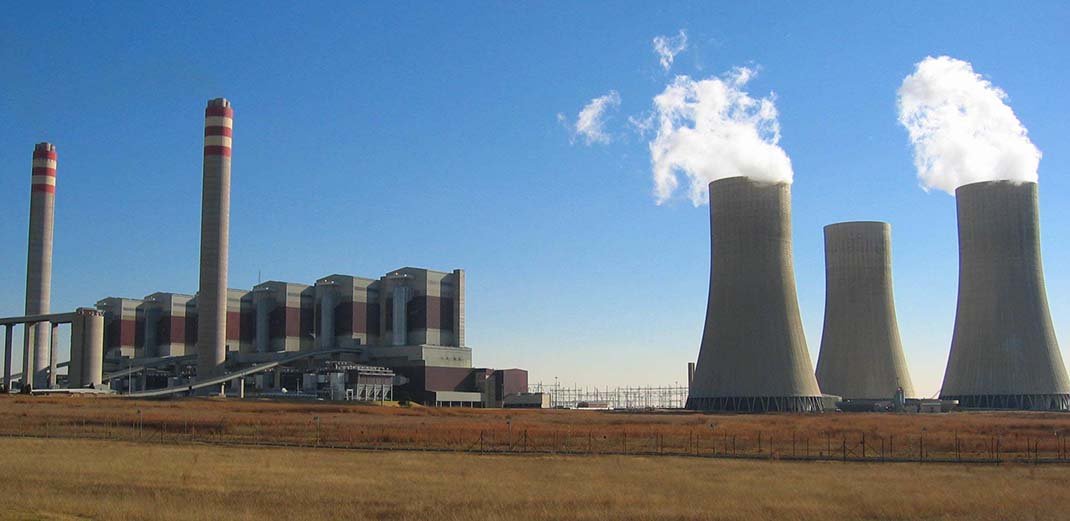

Power plant replacement

Twin boiler feed pump replacement

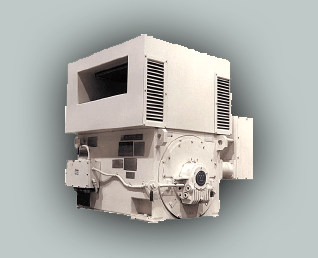

One of two Siemens 630 kW, 6 kV, 10-pole boiler feed pump motors was replaced without site modifications.

Twin boiler feed pump replacement project image

Project overview

One of two Siemens 630 kW, 6 kV, 10-pole boiler feed pump motors was replaced without site modifications.

Challenge

One of two Siemens boiler-feed-pump motors needed replacement without changing the foundation, coupling, or cabling in a critical power-plant service.

Solution

The replacement motor was engineered as a drop-in unit, with cooling upgraded and starting/running behavior reviewed against the duty requirements.

Outcome

The site received a compatible replacement for one side of the twin pump system with improved cooling and operating performance.

Engineering highlights

  • 630 kW
  • 6 kV
  • 10-pole motor
  • IC511 to IC611 cooling improvement

Replacement scope

Drop-in replacementCooling upgradeCritical pump continuity

Project images

Twin boiler feed pump replacement project imageTwin boiler feed pump replacement project imageTwin boiler feed pump replacement project image

Related replacement engineering notes

PAM two-speed controlled-flow operation

Pole Amplitude Modulation motors provide two fixed speeds from a single winding, helping pumps and fans reduce energy use without a full variable-frequency package.

  • Single-winding, two-speed squirrel cage construction
  • Oil-filled five-pole speed-changing switch is typically installed close to the motor
  • Lower-speed starting reduces inrush current and thermal stress

Load-sharing replacement motors

When two motors drive one machine in parallel, replacing one motor requires tight matching of electrical and mechanical behavior so load sharing remains stable.

  • Match torque curve, speed slip, efficiency, inertia, cooling, and starting behavior
  • Preserve shaft height, shaft end, feet, terminal box, and coupling interface
  • Relevant to HPGR, mills, pumps, fans, compressors, and other paired-drive systems

Cooling system enhancement

Aging motors often need improved cooling to handle hotter ambient conditions and longer duty cycles while preserving the existing mounting envelope.

  • Review cooling path, airflow, heat exchanger selection, and cooling class
  • Improve thermal margin without changing the foundation, coupling, or terminal arrangement
  • Recovered example: 4,600 kW motor cooling upgraded from IC511 to IC516 while frame size reduced from 1250 mm to 900 mm

Identical terminal-box replacement

Replacement motors can be designed with identical main and auxiliary terminal boxes to avoid site cable, terminal, and commissioning changes.

  • Match dimensions, cable connections, and terminal locations
  • Reduce shutdown risk during commissioning
  • Especially useful in brownfield replacements where cable routing is fixed
