Motor family

Low Voltage Motors

Cast iron industrial motors from standard efficiency through premium IE4 duty packages.

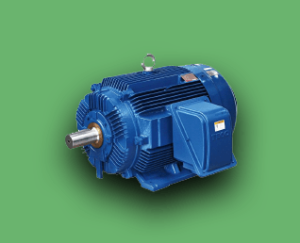

Low Voltage Motors industrial motor solution

Low Voltage Motors specifications and applications

Frames, end shields, and terminal boxes are built from high-grade cast iron for industrial service.

Options include VFD compatibility, special shaft extensions, force ventilation, oversized terminal boxes, and custom paint systems.

  • 1/4 to 1,500 HP
  • 200 to 690 V
  • 2 to 16 poles
  • IE2, IE3, IE4

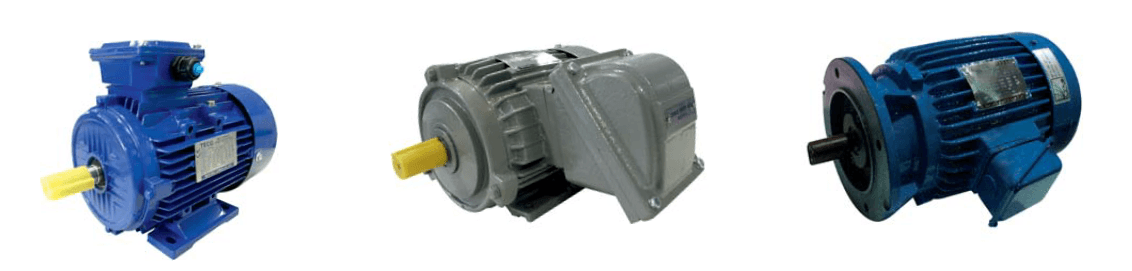

Low Voltage Motors product image Low Voltage Motors product image

Engineering considerations

VFD-compatible motor replacement

VFD-compatible motors require review of the original drive design, harmonic effects, insulation stress, and the ability to operate without changing existing drive settings.

  • Account for THD and high-voltage spike insulation stress
  • Use motor and VFD design data during replacement engineering
  • Witness testing can simulate real operating conditions and load

Related case studies

DC-to-AC motor conversion with VFD control

DC-to-AC motor conversion with VFD control

An obsolete DC motor replacement path was converted into an AC motor and VFD package while protecting the driven machine requirements.

Open Case Study
