Oil and gas brownfield

Identical terminal-box brownfield replacement

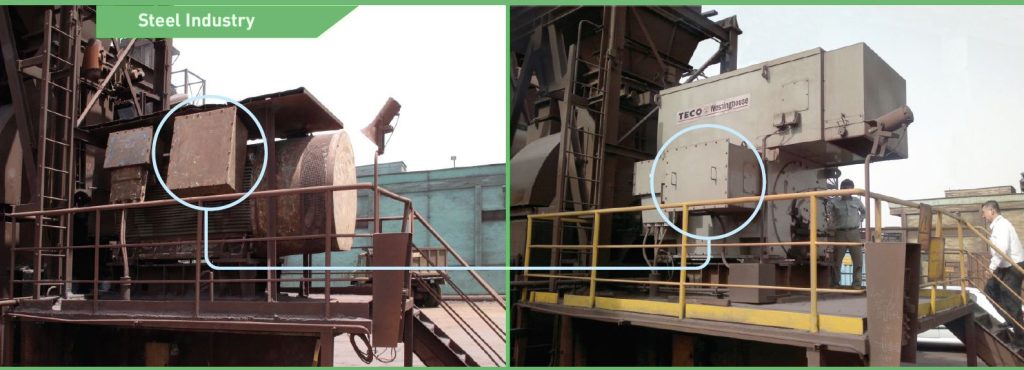

A brownfield replacement motor was engineered with main and auxiliary terminal boxes matching the original motor layout.

Identical terminal-box brownfield replacement project image

Project overview

A brownfield replacement motor was engineered with main and auxiliary terminal boxes matching the original motor layout.

Challenge

Existing cable routes and terminal positions were fixed, so a normal replacement could have required shutdown-time rewiring and site modification.

Solution

The main and auxiliary terminal boxes were duplicated around the original dimensions, cable-entry locations, and terminal positions.

Outcome

The replacement motor could be commissioned with minimal disruption because the site cable interfaces remained unchanged.

Engineering highlights

  • Main terminal box duplication
  • Auxiliary terminal box duplication
  • Fixed cable routes
  • Brownfield commissioning

Replacement scope

Terminal-box matchingCable interface preservationCommissioning risk reduction

Project images

Identical terminal-box brownfield replacement project imageIdentical terminal-box brownfield replacement project imageIdentical terminal-box brownfield replacement project image
