Hazardous area

Explosion Proof Motors

Motors designed for explosive atmospheres in oil, gas, chemical, petrochemical, and process plants.

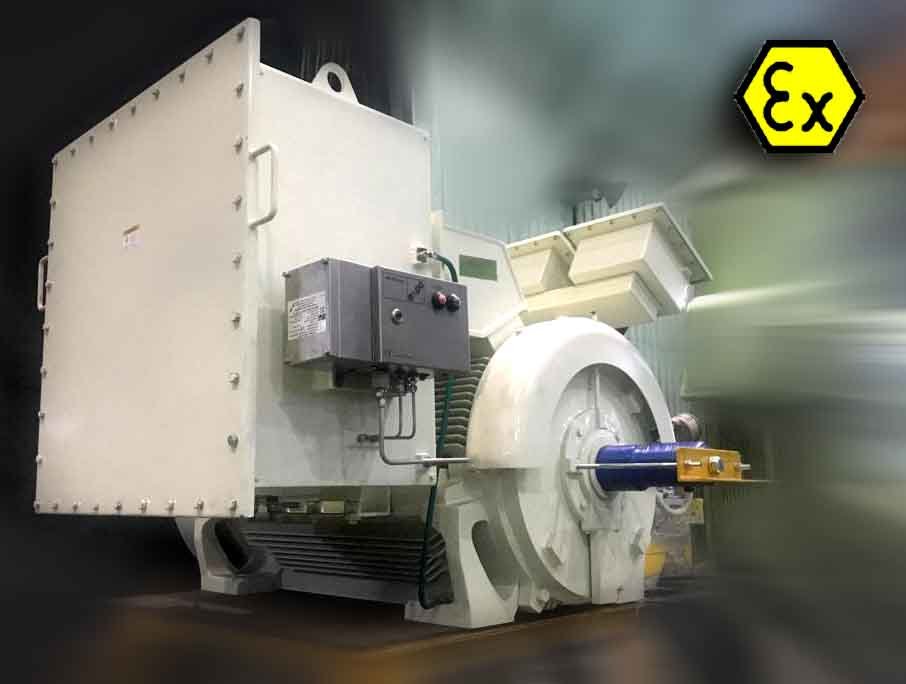

Explosion Proof Motors industrial motor solution

Explosion Proof Motors specifications and applications

These motors are designed to withstand internal explosion pressure and prevent ignition sources from venting into the atmosphere.

Protection types include Ex d, Ex de, Ex e, Ex p, Ex nA, and dust-zone configurations depending on the application.

  • 1/4 to 11,200 HP
  • 200 V to 11 kV
  • ATEX / IECEx / CSA
  • Horizontal or vertical
Explosion Proof Motors product image Explosion Proof Motors product image

Engineering considerations

Identical terminal-box replacement

Replacement motors can be designed with identical main and auxiliary terminal boxes to avoid site cable, terminal, and commissioning changes.

  • Match dimensions, cable connections, and terminal locations
  • Reduce shutdown risk during commissioning
  • Especially useful in brownfield replacements where cable routing is fixed

Hazardous-area replacement

Hazardous-area motor replacements require careful review because site classification and protection standards may have changed since the original installation.

  • Review IEC, IECEx, CSA, UL, and ATEX requirements
  • Confirm the new motor suits current site conditions
  • Applicable to LV, MV, and HV motors in oil, gas, and petrochemical plants

Related case studies

Identical terminal-box brownfield replacement

Identical terminal-box brownfield replacement

A brownfield replacement motor was engineered with main and auxiliary terminal boxes matching the original motor layout.

Open Case Study

Hazardous gas compressor motor package

Hazardous gas compressor motor package

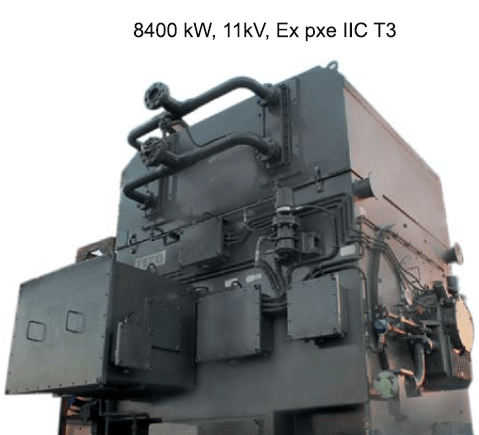

A gas transmission compressor application used an 8,400 kW, 11 kV, 4-pole motor package with hazardous-area requirements.
